MW-1 on the Tornado: Germany’s Cold War Dispenser Explained

The MW-1 on the Panavia Tornado was one of the most distinctive combinations of aircraft and weapon produced by Cold War West Germany. A large dispenser carried beneath the fuselage, it could release smaller munitions for different ground-attack tasks. Its name, Mehrzweckwaffe 1, translates as “multipurpose weapon 1”.

Understanding it requires three separate stories: what the weapon was designed to do, how it worked as part of the Tornado system, and what Germany actually used in combat. Those stories are often blurred together. The MW-1 was neither a missile nor simply an oversized bomb, and photographs of British Tornados attacking Iraqi airfields do not establish German MW-1 combat use.

This guide explains the dispenser’s layout, its munition families, its relationship with the Tornado IDS and the evidence behind its eventual disappearance from German service.

What was the Tornado’s MW-1?

The specialist Fenix Insight ordnance database identifies the MW-1 as a captive dispenser: the carrier remained on the aircraft during dispensing. That distinction matters. A conventional bomb leaves its pylon as a complete weapon; MW-1 separated the external carrier from the expendable contents. “Captive” describes its behaviour during release, rather than proving anything about subsequent reloading or reuse.

Why the Luftwaffe paired MW-1 with the Tornado IDS

The Tornado was developed by Britain, West Germany and Italy as a two-seat, variable-sweep-wing combat aircraft. In its IDS, or interdictor/strike, form, ground attack was central to its identity. The Bundeswehr’s aircraft history describes an all-weather aircraft whose German deliveries began in 1981.

MW-1 belonged to the same Cold War problem as the aircraft: how to deliver a significant ground-attack effect during a short encounter with a defended target area. A dispenser containing many smaller munitions offered a different approach from carrying a small number of individual bombs.

The aircraft and weapon therefore need to be considered together. The Tornado supplied the crew, navigation system and carriage capability; the dispenser supplied a range of possible effects. The two-seat arrangement divided the work of flying and managing the mission, while the weapon represented one specialised option within the aircraft’s wider ground-attack role.

When did the MW-1 enter service?

“1984” and “1985” both appear in accounts of the MW-1, but the underlying milestones are different. Panavia’s history of German Tornado squadrons records that Jagdbombergeschwader 31 “Boelcke” commenced operations with MW-1 in November 1984.

The industrial supplier PWO’s company history, meanwhile, describes a procurement decision in 1984 and its own order in 1985. An operational milestone at a squadron and a supplier’s production order need not describe the same moment. “Introduced in the mid-1980s” is consequently a useful summary, provided the more precise dates retain their context.

This was a weapon conceived for a possible European conflict, rather than a response to the Gulf War of 1991. Contemporary discussion in the SIPRI Yearbook 1984 already treated MW-1 as a developing German weapon associated with runway attack and the Tornado era.

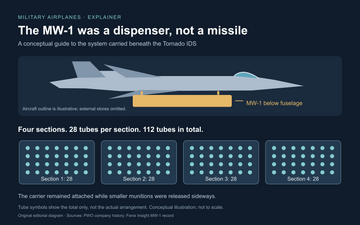

Inside the MW-1: four sections and 112 tubes

The dispenser’s most recognisable numerical feature was its 112 tubes. PWO describes four sections containing 28 aluminium ejection tubes apiece, within a substantial external assembly. Its account gives a loaded-system weight of up to approximately 4.5 tonnes. That is a supplier’s historical figure, rather than a universal weight for every possible configuration.

The size of the installation helps explain why MW-1 belongs in discussions of aircraft integration as much as ammunition. A store of this scale affects the aircraft carrying it: it occupies space, adds mass and changes aerodynamic resistance. It was a major mission load, rather than a small accessory fitted with little consequence.

One common misunderstanding follows from the tube count. 112 tubes does not mean 112 individual bombs. A tube was part of the dispensing arrangement, not necessarily a one-for-one description of the number of smaller munitions carried. Counts of tubes, complete dispensers and submunitions refer to different things and should not be interchanged.

The contents were expelled from the dispenser rather than carried away inside a single falling outer casing. This is the central mechanical idea readers need to understand; precise release settings and delivery patterns are not necessary to explain its historical significance.

What did MW-1 carry? The five names explained

The familiar names KB44, STABO, MIFF, MUSA and MUSPA describe different members of the MW-1 munition family. They should not be read as a single load that every German Tornado carried on every mission.

The evidence has dates attached. In Bundestag paper 16/2456, published in August 2006, the German government stated that MW-1 could carry MUSA, KB44 and STABO separately or in mixed loads. A December 1999 government answer documented MIFF as an anti-tank submunition associated with MW-1 and Tornado.

The Berlin Information-center for Transatlantic Security’s 1995 research also discussed the system’s mines and the debate over how particular munitions were classified. Read together, these sources establish a broader family while warning against treating an undated list as an exact inventory for a particular year.

Runway attack and area denial: the intended effects

Runway damage is the easiest role to picture, but it was only one part of the MW-1 story. STABO connected the dispenser with airfield attack; other contents addressed vehicles or the use of ground after an attack.

These roles involved different definitions of success. Damaging a runway was about interrupting its use. Attacking vehicles concerned the equipment within a target area. Mine and denial roles could leave a hazard after the aircraft had departed. The weapon’s “multipurpose” name reflected this range rather than a claim that every munition achieved every effect.

From a historical perspective, MW-1 illustrates the Cold War emphasis on disrupting an opponent’s operations across an area. It also shows why assessing such a weapon only by its initial destructive effect is incomplete. The duration and uncertainty of danger on the ground became central to the later humanitarian debate.

MW-1 versus JP233: why Tornado histories get confused

The British JP233 and German MW-1 shared two conspicuous associations: the Tornado and attacks on airfields. They were nevertheless different weapons, with different national service histories.

The RAF Museum’s guide describes JP233 as an airfield-denial weapon combining runway-cratering munitions and mines. That gives it an obvious family resemblance to part of the MW-1 mission, but resemblance does not make the systems interchangeable.

The distinction becomes especially important in accounts of Operation Granby, Britain’s contribution to the 1991 Gulf War. The RAF Museum’s 1991 chronology records British Tornado GR1 airfield attacks using JP233. Those operations are evidence of JP233’s combat employment, not MW-1’s.

Was the MW-1 ever used in combat?

For Germany, the strongest evidence is unusually direct. In its September 2015 statement to the Convention on Cluster Munitions, Germany stated that its armed forces had never used cluster munitions.

That statement supports an important distinction between operational service and combat employment. A weapon can be procured, carried, exercised and maintained for years without being fired in war. A squadron’s introduction of MW-1 therefore does not contradict Germany’s later statement.

It is also better to keep the conclusion within the evidence. A German declaration establishes Germany’s record; it should not silently become a claim about every possible foreign operator. For the Luftwaffe history examined here, the documented story is one of Cold War capability and subsequent withdrawal, rather than an established combat campaign.

Why did Germany withdraw and destroy these weapons?

Cluster munitions raise concerns both because they affect an area and because unexploded submunitions can remain dangerous afterwards. The history of MW-1 therefore intersects with the international movement to eliminate cluster-munition stocks, rather than ending solely with a newer aircraft or replacement weapon.

Dates require care here too. Germany’s 2006 parliamentary answer described an anticipated MW-1 phase-out beginning in 2007 and extending beyond 2016. That was a forecast made before the later treaty-driven destruction programme; it is not proof that the weapon remained operational until that date.

The Cluster Munition Monitor 2010 recorded that German destruction of MW-1 dispensers had begun in 2009. Separately, the Convention’s official announcement states that Germany completed destruction of its entire declared cluster-munition stockpile on 25 November 2015.

That final date belongs to the national stockpile programme. It should not be presented as the precise day the last MW-1 was withdrawn or destroyed. Keeping the two events separate avoids a misleadingly neat ending to a more complicated disposal history.

A short timeline of the Tornado and MW-1

• 1981: German Tornado deliveries begin.
• November 1984: Panavia records JaboG 31 commencing MW-1 operations.
• 1985: PWO’s history records its production order, following the 1984 procurement decision.
• 2006: A parliamentary answer describes then-current loads and a proposed phase-out schedule.
• 2009: German MW-1 destruction begins, according to Cluster Munition Monitor.
• 25 November 2015: Germany completes destruction of its declared cluster-munition stockpile as a whole.

Frequently asked questions about the Tornado MW-1

What does MW-1 stand for?

MW-1 stands for Mehrzweckwaffe 1, or multipurpose weapon 1. The name reflects a dispenser able to carry different types of smaller munitions for different ground-attack roles.

Was MW-1 a missile?

No. It was a submunition dispenser carried beneath the aircraft. The dispenser remained attached during release; it was not a self-propelled missile travelling towards a target.

Did MW-1 carry exactly 112 bombs?

No. The figure 112 describes the ejection tubes: four sections of 28. Tube totals and submunition totals are different measures.

Was MW-1 the weapon used by RAF Tornados in the Gulf War?

The RAF Museum identifies JP233 as the British Tornado airfield-denial weapon used in 1991. JP233 and MW-1 must be treated as separate systems.

Why is MW-1 important to Tornado history?

It shows how closely a combat aircraft’s design, national doctrine and intended weapons were connected. It also demonstrates how a weapon’s planned military purpose can be overtaken by a wider change in policy and the destruction of stockpiles.

The MW-1’s place in aviation history

The MW-1 captures a particular moment in the Tornado’s career: an aircraft designed for demanding strike missions paired with a large, specialised dispenser built around the needs of Cold War ground attack. Its 112 tubes make it visually memorable, but its deeper significance lies in the range of effects its designers tried to package into one installation.

Its history is clearest when the distinctions remain intact: a dispenser rather than a missile; a family of munitions rather than one universal load; intended use rather than documented combat employment; and national stockpile destruction rather than a single neatly dated retirement event.

Research note: this article draws on manufacturer and supplier histories, German parliamentary answers, institutional research, official destruction statements and RAF Museum records. Contemporary photographs provide aircraft context; the MW-1 diagrams are original educational illustrations and are not engineering drawings.
